JPAC Solutions - All-in-One ISP Management System

Enterprise GIS & OSP Planner Engine

JPAC FTTH Mapping & Planner Pro V4

Designed specifically for Philippine ISPs, Cable TV Operators, and Fiber Engineers. Eliminate manual optical power budget errors, streamline Joint-Pole attachment permits, and manage subscriber ports with zero guesswork.

GIS Permitting (KML / GeoJSON) Google Earth / QGIS

Export complete route vectors with pole locations directly to `.kml`, `.kmz`, or `.geojson` formats. Ready for official submission to LGUs, DPWH, Meralco, and Electric Cooperatives.

Cascaded Optical Power Budget Auto dBm Traversal

Automated link budget calculation that traces path distances, waypoints, splitters (1:2 to 1:64), splice/connector attenuation coefficients, and safety margins for every deployed NAP.

Independent Core & TIA-598 Color Code 1C to 288C

Set independent fiber cable capacities (1C to 288C) per element without global overrides. Includes TIA-598 color coding, core status remarks, and target direction mapping.

CRM Client Port & Meter Drop Lines Live Drop Meters

Assign subscribers directly to specific NAP terminal ports. Features dynamic drop line rendering and live distance badges measuring meters from NAP to client premises.

ftth_planner_v4_canvas.map

1490nm Active

Total Cable Distance 2.48 km

Terminal RX Power -19.45 dBm

Upstream Loss Cascade 2 Hops • 1:8 Splitter

OLT-MAIN ➔ LCP-001 (1:8 PLC) ➔ NAP-CENTRAL-04

Core Breakdown (4 Core TIA-598) Active Status

C1 - Blue Active - Feeder Main Connected

C2 - Orange Spliced - NAP-002 In Connected

Multi-Tenant Isolated View Full Details & Features

REMOTE INFRASTRUCTURE ACCESS

JPAC VPN | Mikrotik and OLT Remote Services

Need remote access to your MikroTik even without a public IP?

Remote Winbox access

WebFig HTTPS access

RouterOS API for billing integration

Optional SSH access

Supports RouterOS 6 and RouterOS 7

Simple copy-and-paste setup script

No public IP required at the client location

OLT Remote Service

JpacSolution.com linuxcommand22@gmail.com 09295697039

CONNECTING MINDS, CREATING POSSIBILITIES

JPAC Remote Gateway Portal

Access your cloud tunnel management interface directly

Launch JpacVPN Portal

Architecture Preview

System Module Blueprint

Click or swipe horizontally across module tiles to inspect deeper engine specifications.

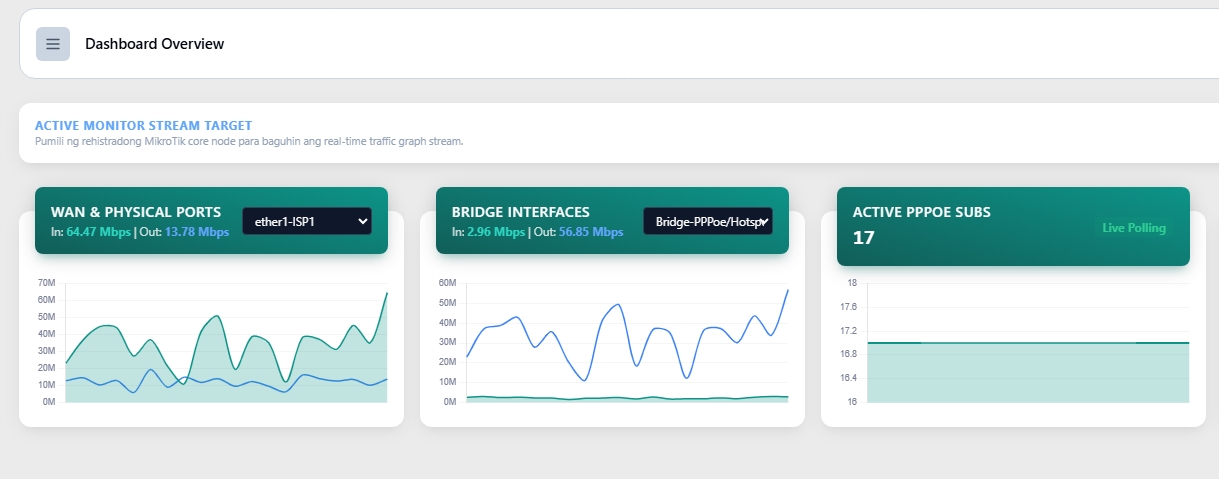

Centralized Dashboard

Real-time Insights: Instant visibility into key metrics like total users, active connections, and bandwidth usage. Financial Pulse: Track Paid Invoices (e.g., ₱2,000.00) vs. Unpaid (e.g., ₱6,966.67) and monitor overall income vs. expenditure. Client Growth: See new client acquisition in the last 30 days.

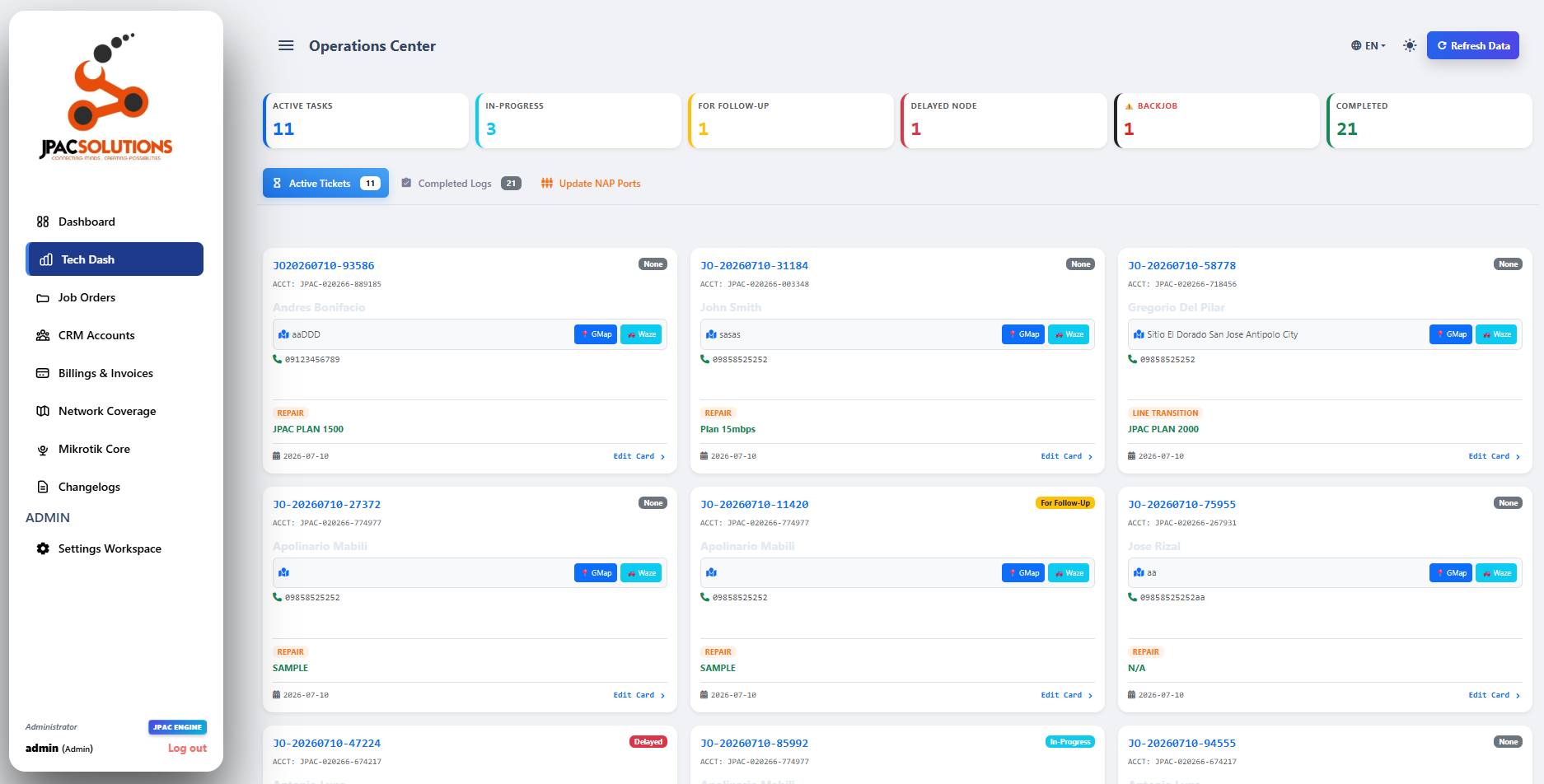

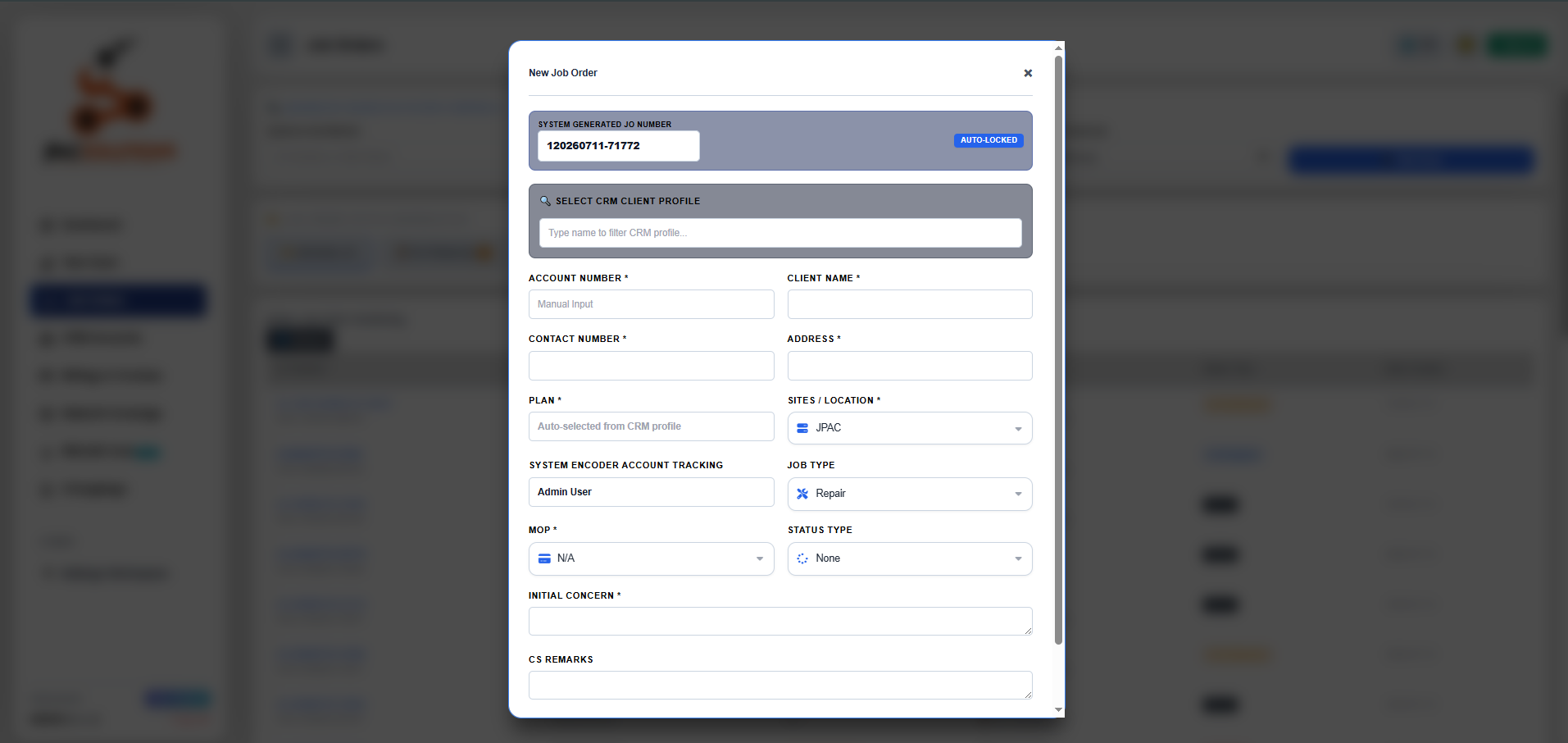

Integrated Operations Center & Job Orders

Efficient Ticketing: Convert support requests into managed tickets (Active, In-Progress, For Follow-Up). Technical Dashboard (Tech Dash): View current operational tasks and field-team progress. Status Segregation: Monitor Job Orders by status (Repair, New Install, Completed) and monitor technician availability in real-time.

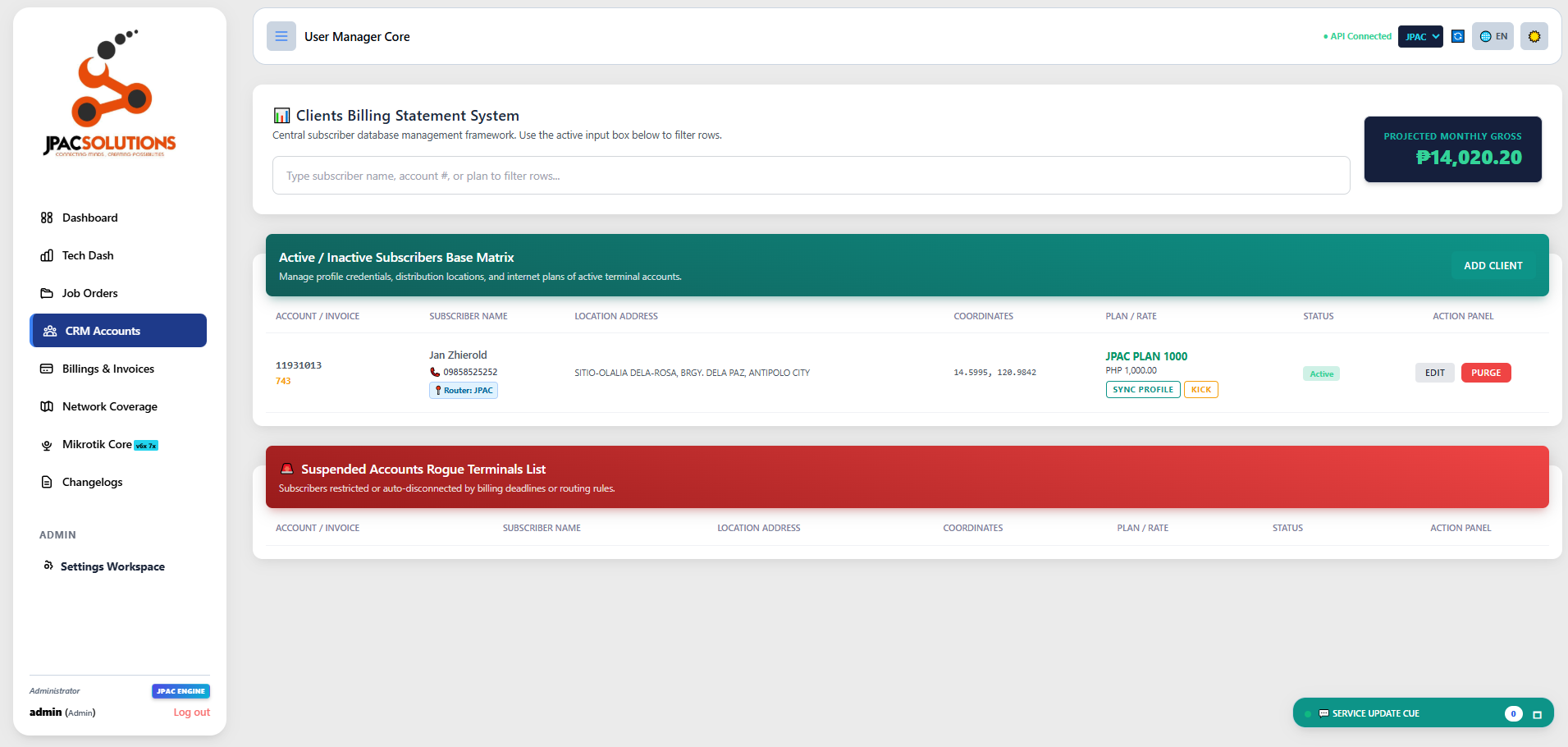

CRM & Billing Statement System

Full Client Lifecycle: Manage subscriber profiles, contact details, and assigned service plans (e.g., Plan 1499 - 50Mbps). Status Management: Quickly identify Active, Suspended, or Disconnected clients. Projected Revenue: Get instant projections on monthly gross based on the current subscriber base.

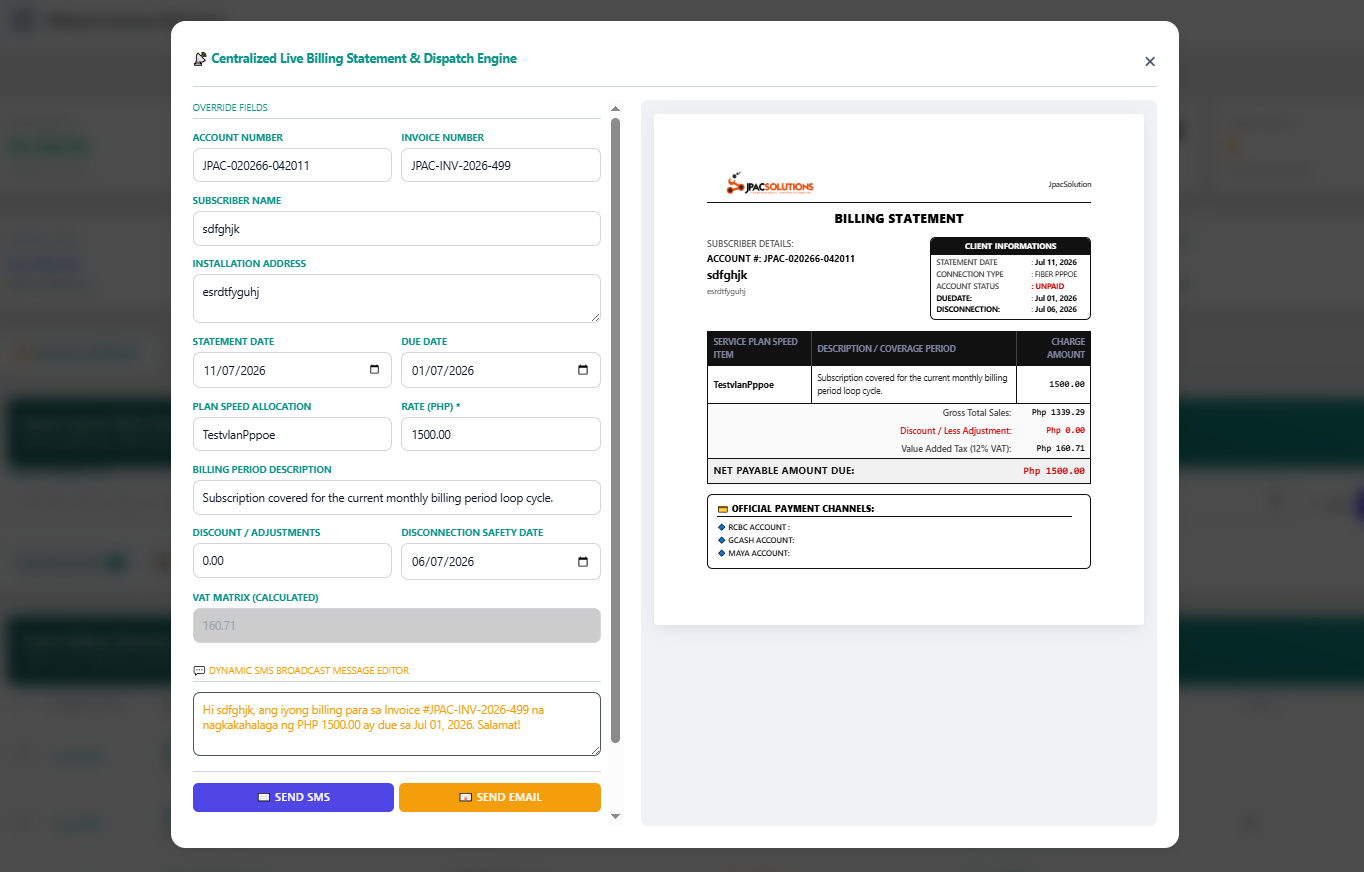

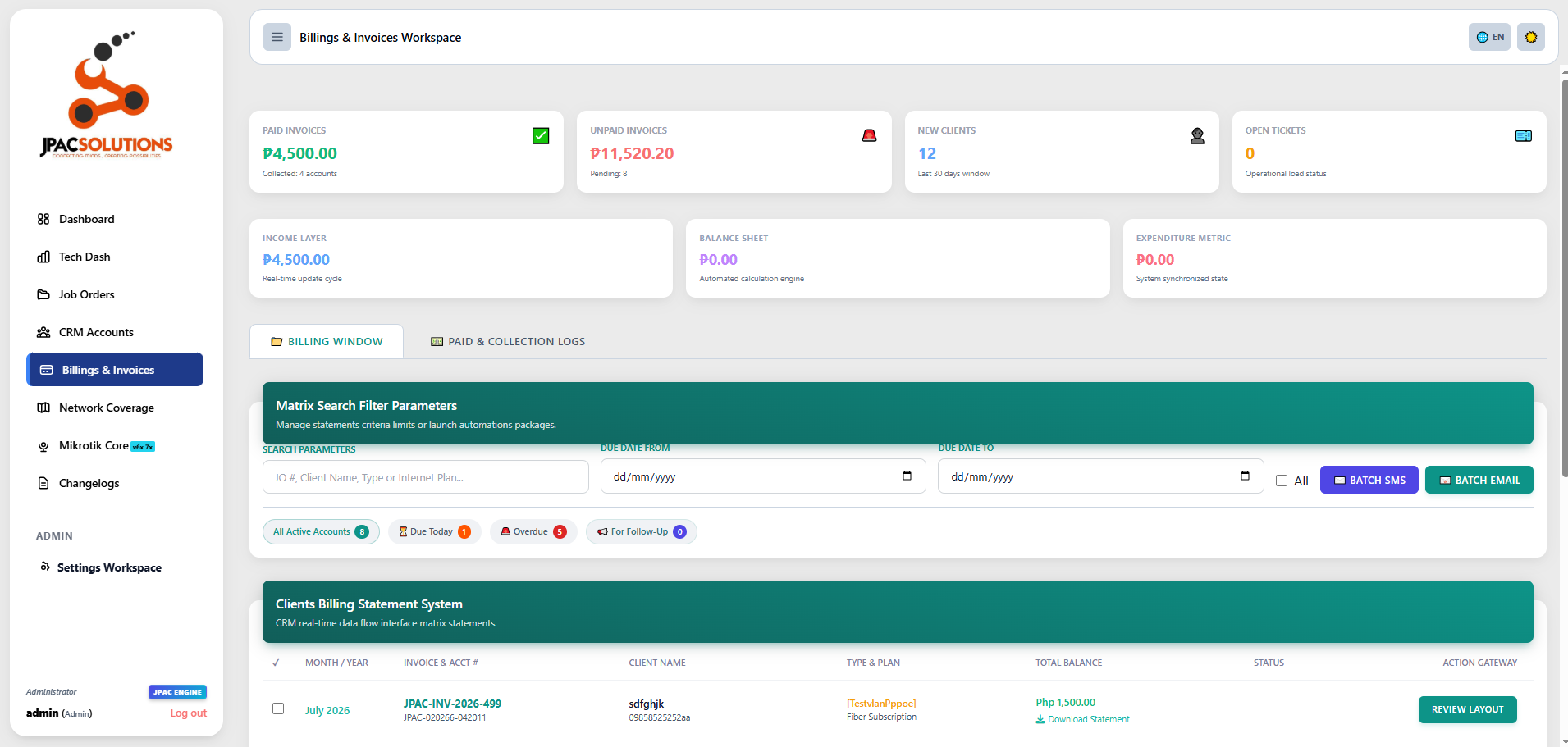

Billings & Invoices Workspace

Automated Invoicing: Generate professional invoices in batches with defined due dates. Streamlined Payments: Review and send invoice layouts to clients with a single click. Batch Communication: Easily contact clients regarding payments using Batch Email and Batch SMS integration.

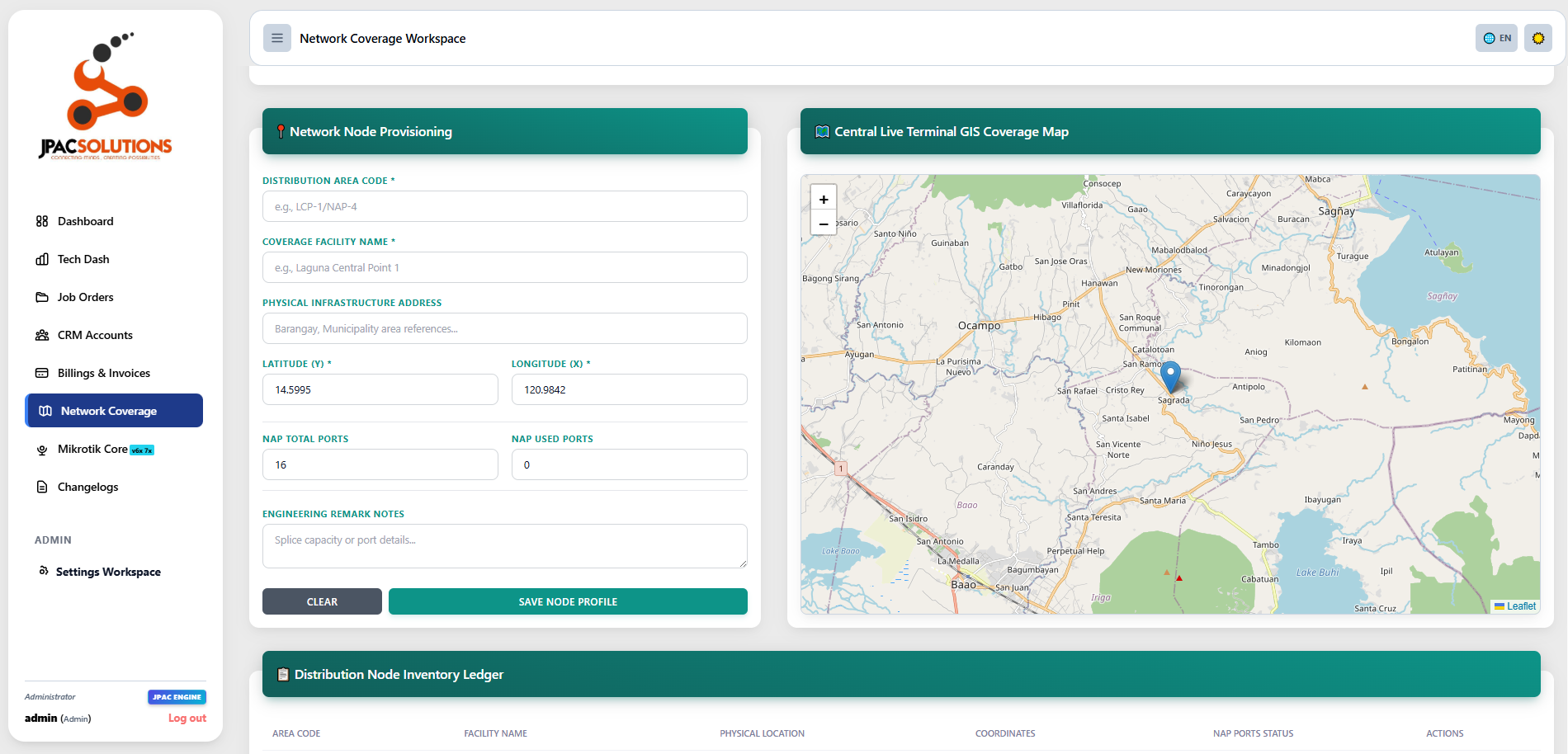

GIS Network Coverage Mapping

Visual Network Management: Map your entire infrastructure including fiber boxes and distribution layers. Map Tracker Interface: Manage active network node loops on a detailed live terminal GIS coverage map. Node Provisioning: Add and configure Network Nodes with precise latitude/longitude, NAP total ports, and used ports data.

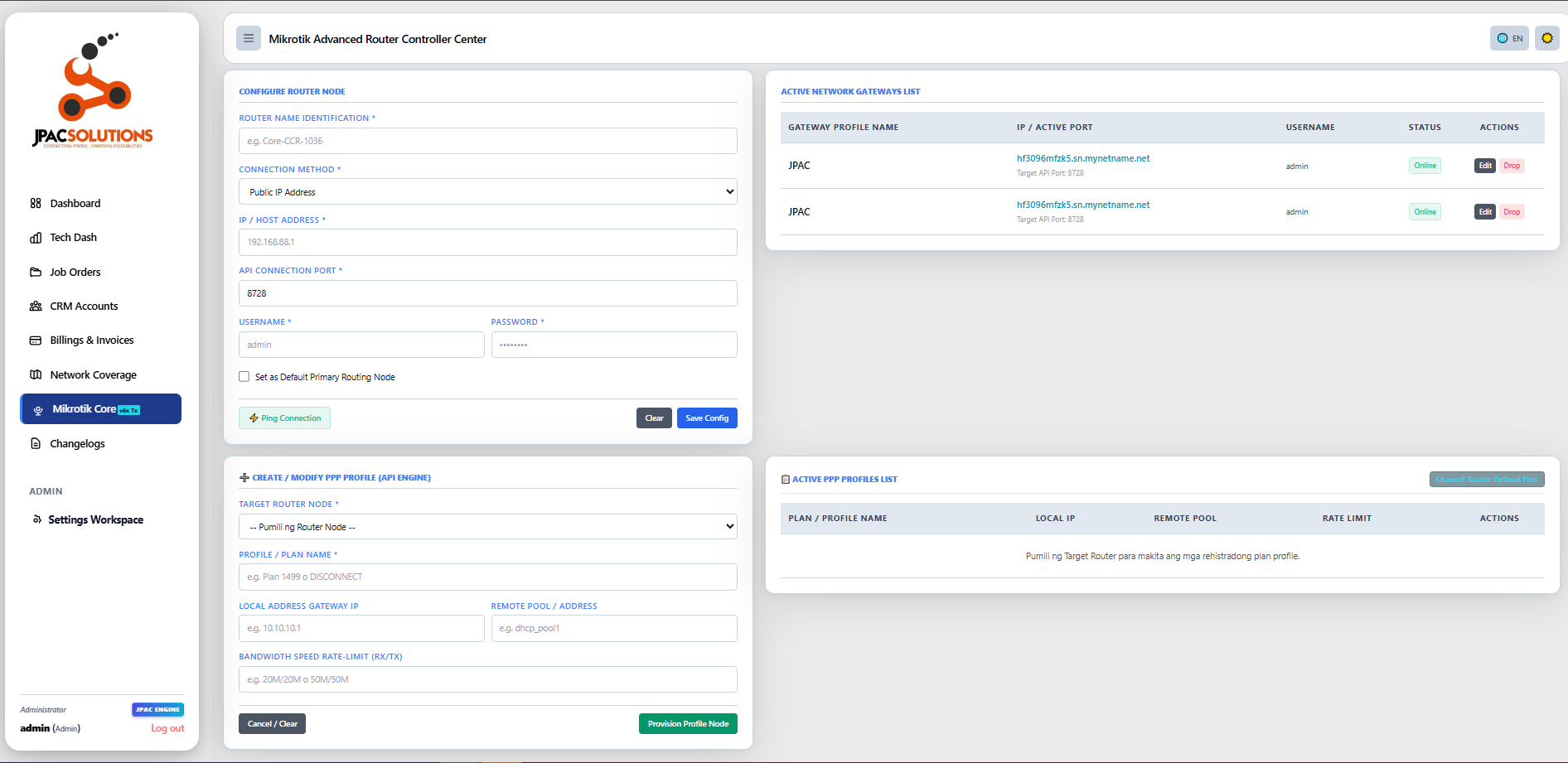

Mikrotik Advanced Router Controller

Centralized Router Control: Manage multiple router nodes directly from the ISP management platform. Active Gateway List: Real-time synchronization status and API connectivity monitoring for all gateways. PPP Management: Create, modify, and monitor PPP profiles to control bandwidth limits, local/remote IPs, and authentication.

Field Dispatch Automation

Job order tracking software coordinating real-time field tech deployment logs.

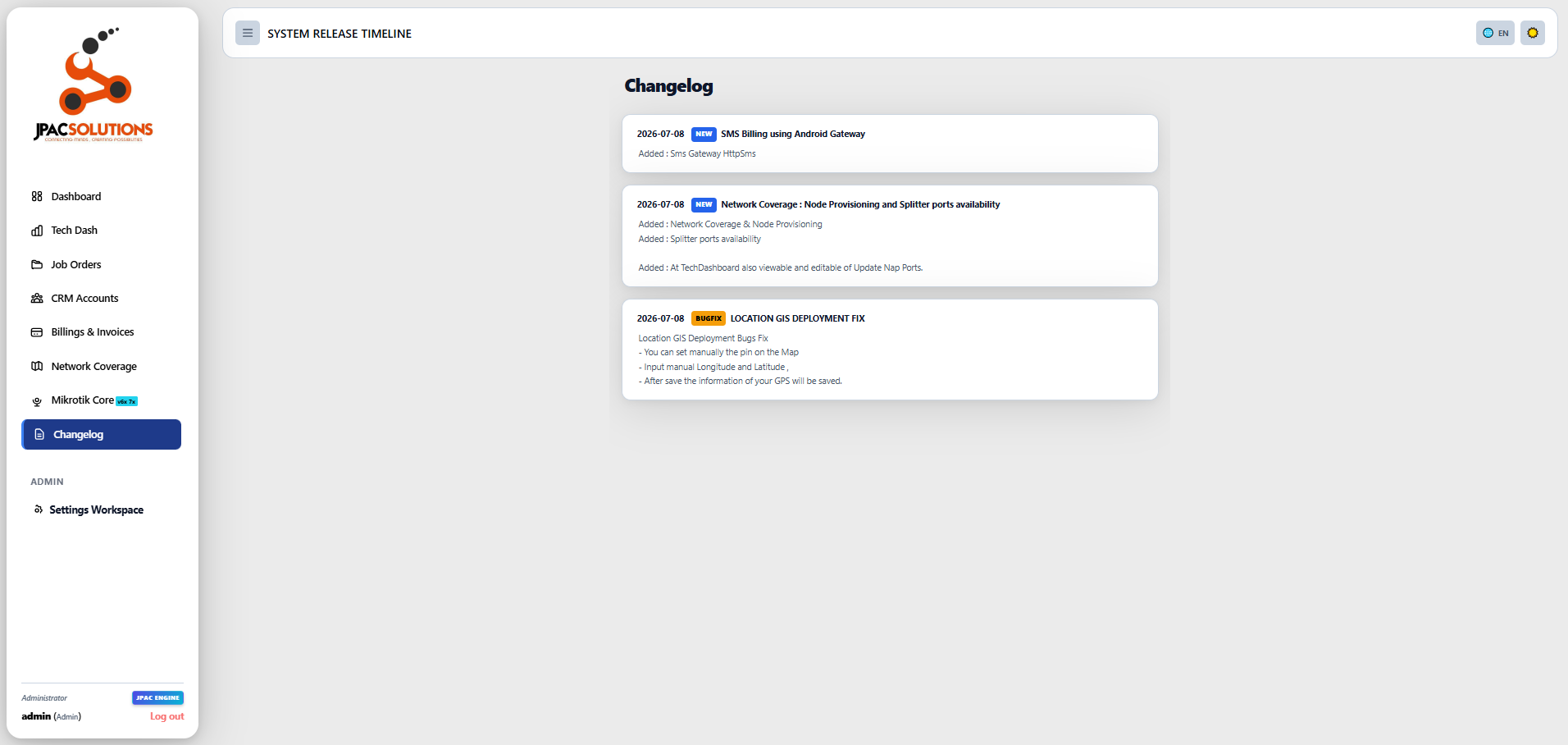

Transparent System Changelog

Always Up-to-Date: Track every new feature, improvement, and bug fix. Feature Highlight (Latest Release): SMS Billing using Android Gateway now officially added! Improvements: Network Coverage Node Provisioning, Splitter port availability, and Location GIS Deployment fixes.

SMS & Email Interface and Template

Advance Sms Features and Billing straight to your sms and email .

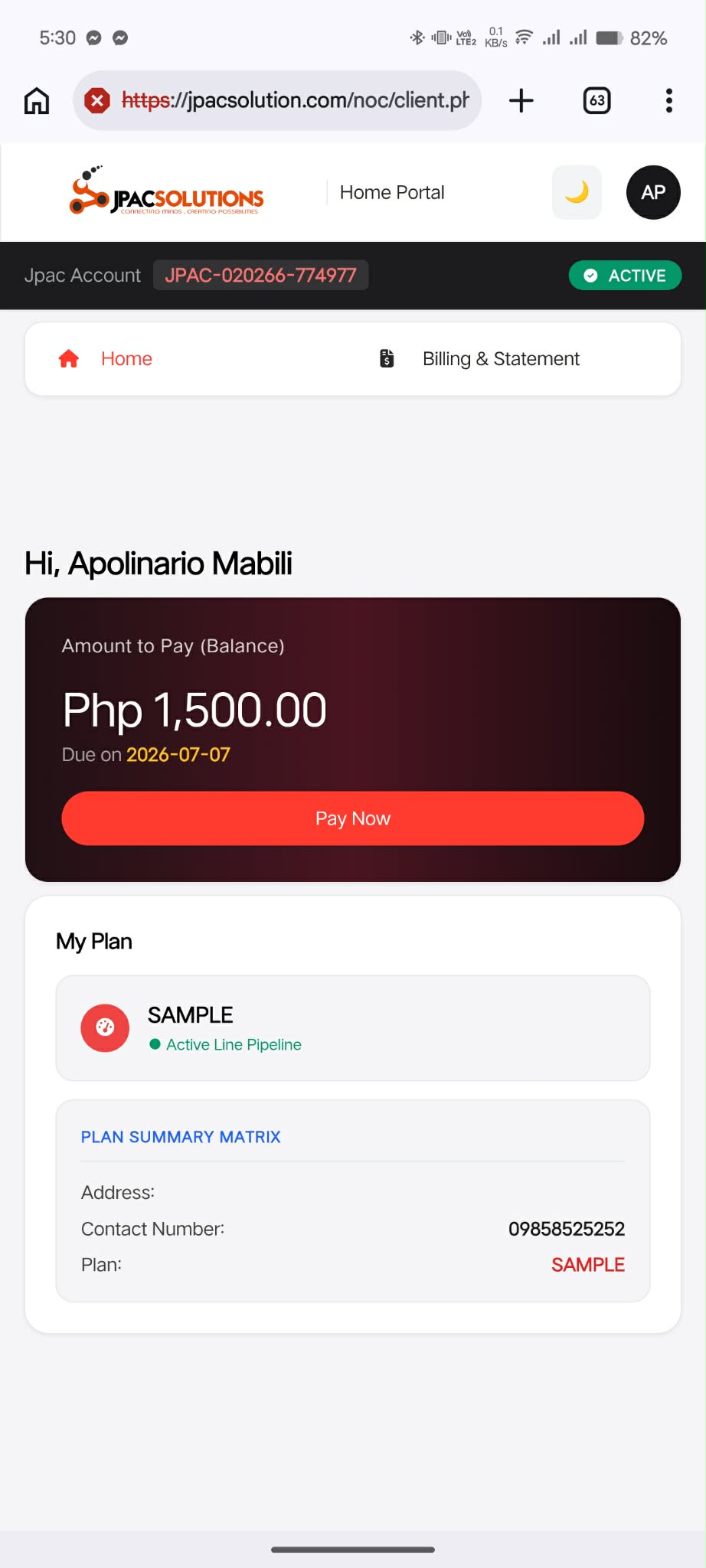

Client Portal

With Client Portal for your Balance and checking SOA and payment Status.

NOC CONTROL ARCHITECTURE

Engineered for Telecom Operations

Replace multiple disjointed accounting tools and manual spreadsheets with a single unified operational dashboard.

Central Tech Dashboard

Real-time status loops tracking active PPPoE lines, automated income logs, and global performance variables immediately visible upon authentication.

Android SMS Gateway

Broadcast crucial batch billing statements directly via standard HttpSms Android terminal hardware APIs, completely omitting expensive third-party aggregators.

Live GIS Map Provisioning

Central live geographic mapping framework. Plot fiber optical terminal points (NAP boxes) with coordinate anchors to monitor allocated vs vacant port capacities.

MikroTik RouterOS Sync

Native v6x/v7x Mikrotik API Engine interface. Sync subscriber profiles, manage rate thresholds, override active lines, and trigger automatic disconnects on overdue accounts.

Job Order & Ops Tracker

Classify support calls cleanly into active tasks, delayed processes, or resolution logs to optimize deployment velocities for field engineering crews.

Rogue Terminal Purging

Retain complete visibility over network line access permissions. Detect unauthenticated MAC hardware automatically to scrub unauthorized configurations securely.

JPACSYS
ISP Management System
